Lab 4-2: Snowpack internal energy - completing the snowpack energy balance

Written by Daniel Hogan - April, 2023.

Modified by Jessica Lundquist - April, 2023.

Modified by Eli Schwat - January 2024.

import xarray as xr
import numpy as np
import os
import urllib
import pandas as pd
import datetime as dt
import matplotlib.pyplot as plt

SOS Data

sos_file = "../data/sos_full_dataset_30min.nc"
sos_dataset = xr.open_dataset(sos_file)

Replicate the steps from Lab 4-1 to create a dataset of in-snow temperature measurements (excluding snow surface temperatures)

tsnow_vars = [v for v in sos_dataset if 'Tsnow_' in v and v.endswith('_d')]
snow_depth_vars = ['SnowDepth_d']
print(snow_depth_vars, tsnow_vars)

['SnowDepth_d'] ['Tsnow_0_4m_d', 'Tsnow_0_5m_d', 'Tsnow_0_6m_d', 'Tsnow_0_7m_d', 'Tsnow_0_8m_d', 'Tsnow_0_9m_d', 'Tsnow_1_0m_d', 'Tsnow_1_1m_d', 'Tsnow_1_2m_d', 'Tsnow_1_3m_d', 'Tsnow_1_4m_d', 'Tsnow_1_5m_d']

# Transform the NetCDF dataset to be a "tidy" dataset of snow depths
snow_temp_dataset = sos_dataset[
    tsnow_vars + snow_depth_vars
].to_dataframe().reset_index().set_index(['time', 'SnowDepth_d']).melt(ignore_index=False)

# Calculate the depth of the snow sensor (relative to the snow surface)
# using the snow depth measurements and the known above-ground height
# of the snow sensors
snow_temp_dataset['height_agl'] = snow_temp_dataset['variable'].str[6:9].str.replace('_', '.').astype(float)
snow_temp_dataset = snow_temp_dataset.reset_index().set_index('time')
snow_temp_dataset['depth'] = snow_temp_dataset['height_agl'] - snow_temp_dataset['SnowDepth_d']

# remove measurements NOT in the snowpack
snow_temp_dataset = snow_temp_dataset.query("depth < 0")
snow_temp_dataset

	SnowDepth_d	variable	value	height_agl	depth
time
2022-11-28 01:00:00	0.423657	Tsnow_0_4m_d	-9.056437	0.4	-0.023657
2022-11-28 01:30:00	0.461395	Tsnow_0_4m_d	-10.109233	0.4	-0.061395
2022-11-28 02:00:00	0.499132	Tsnow_0_4m_d	-9.103524	0.4	-0.099132
2022-11-28 02:30:00	0.536870	Tsnow_0_4m_d	-10.318118	0.4	-0.136870
2022-11-28 03:00:00	0.574608	Tsnow_0_4m_d	-11.310650	0.4	-0.174608
...	...	...	...	...	...
2023-04-09 11:00:00	1.509988	Tsnow_1_5m_d	-2.090520	1.5	-0.009988
2023-04-09 11:30:00	1.506667	Tsnow_1_5m_d	-2.059685	1.5	-0.006667
2023-04-09 12:00:00	1.503345	Tsnow_1_5m_d	-2.046416	1.5	-0.003345
2023-04-09 12:30:00	1.501286	Tsnow_1_5m_d	-1.991756	1.5	-0.001286
2023-04-10 03:00:00	1.500064	Tsnow_1_5m_d	-1.185983	1.5	-0.000064

47089 rows × 5 columns

Calculate internal energy of the snowpack

From Module 4, we can estimate the change in internal energy of the snowpack with the equation

\[ \frac{d}{dt} (\Delta z U) = \rho_s c_p^{ice} \Delta z \frac{d}{dt} \langle T_s \rangle \]

where \(\langle T_s \rangle\) is the depth-averaged snowpack temperature. Let’s calculate this

# Estimate the average snowpack temperature by averaging all in-snow temperatuer measurements for each timestamp
snow_internal_energy_df = snow_temp_dataset.groupby([snow_temp_dataset.index])[['value']].mean().rename(columns={
    'value': 'snowpack_temp'
})
snow_internal_energy_df

	snowpack_temp
time
2022-11-28 01:00:00	-9.056437
2022-11-28 01:30:00	-10.109233
2022-11-28 02:00:00	-9.103524
2022-11-28 02:30:00	-10.241496
2022-11-28 03:00:00	-11.251528
...	...
2023-05-09 05:30:00	NaN
2023-05-09 06:00:00	NaN
2023-05-09 06:30:00	NaN
2023-05-09 07:00:00	NaN
2023-05-09 07:30:00	NaN

6817 rows × 1 columns

For now we will estimate the density of snow as constant, let’s say 300 kg/m^3.

Note we also need snow depth. Let’s add that in. We will use snowpdepth measurements from tower D, because that is where we took our snow temperature measurements from.

# add snow depth to our dataset
snow_internal_energy_df = snow_internal_energy_df.join(
    sos_dataset['SnowDepth_d'].to_series()
)
snow_internal_energy_df.head()

	snowpack_temp	SnowDepth_d
time
2022-11-28 01:00:00	-9.056437	0.423657
2022-11-28 01:30:00	-10.109233	0.461395
2022-11-28 02:00:00	-9.103524	0.499132
2022-11-28 02:30:00	-10.241496	0.536870
2022-11-28 03:00:00	-11.251528	0.574608

from metpy.units import units

We assume a constant value of density for the snowpack for this lab

rho_s = 300 * units ("kg/m^3")
c_p_ice = 2090 * units ("J/kg/K") # specific heat capacity of ice
delta_t = 30*60*units("second") # our timestep is 30 minutes

T_snowpack = snow_internal_energy_df['snowpack_temp'].values * units('degC')
Depth_snowpack = snow_internal_energy_df['SnowDepth_d'].values * units('meters')

Calculate the dT/dt

dT_dt = np.gradient(
    snow_internal_energy_df['snowpack_temp'],
    30*60
) * units('K / second')

Calculate the internal energy change term

\[ \frac{dU}{dt} = \rho_s c_p^{ice} \Delta z \frac{d}{dt} \langle T_s \rangle \]

dU_dt = rho_s * c_p_ice * Depth_snowpack * dT_dt

snow_internal_energy_df['internal_energy_change'] = dU_dt.magnitude

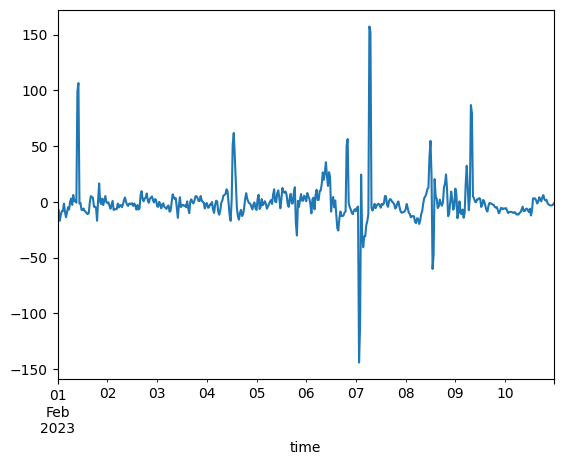

snow_internal_energy_df['internal_energy_change'].loc['20230201': '20230210'].plot()

<Axes: xlabel='time'>

Calculating a (more) complete snowpack energy balance

Building on our results from Lab3-2, let’s plot all the components of the snowpack energy balance. Remember in Lab3-2, we calculated the residual and wondered if that residual was equal to the snowpack internal energy change. Now we have an estimate of that term.

Load the saved dataset from Lab3-2. Remove the estimated “residual” as we will recalculate it.

energy_balance_df_diurnal_average = pd.read_pickle("../module3/energy_balance_df_diurnal_average.pkl")
energy_balance_df_diurnal_average = energy_balance_df_diurnal_average.drop(columns='residual')
energy_balance_df_diurnal_average

---------------------------------------------------------------------------
KeyError                                  Traceback (most recent call last)
Cell In[15], line 2
      1 energy_balance_df_diurnal_average = pd.read_pickle("../module3/energy_balance_df_diurnal_average.pkl")
----> 2 energy_balance_df_diurnal_average = energy_balance_df_diurnal_average.drop(columns='residual')
      3 energy_balance_df_diurnal_average

File /opt/hostedtoolcache/Python/3.11.14/x64/lib/python3.11/site-packages/pandas/core/frame.py:5603, in DataFrame.drop(self, labels, axis, index, columns, level, inplace, errors)
   5455 def drop(
   5456     self,
   5457     labels: IndexLabel | None = None,
   (...)   5464     errors: IgnoreRaise = "raise",
   5465 ) -> DataFrame | None:
   5466     """
   5467     Drop specified labels from rows or columns.
   5468
   (...)   5601             weight  1.0     0.8
   5602     """
-> 5603     return super().drop(
   5604         labels=labels,
   5605         axis=axis,
   5606         index=index,
   5607         columns=columns,
   5608         level=level,
   5609         inplace=inplace,
   5610         errors=errors,
   5611     )

File /opt/hostedtoolcache/Python/3.11.14/x64/lib/python3.11/site-packages/pandas/core/generic.py:4810, in NDFrame.drop(self, labels, axis, index, columns, level, inplace, errors)
   4808 for axis, labels in axes.items():
   4809     if labels is not None:
-> 4810         obj = obj._drop_axis(labels, axis, level=level, errors=errors)
   4812 if inplace:
   4813     self._update_inplace(obj)

File /opt/hostedtoolcache/Python/3.11.14/x64/lib/python3.11/site-packages/pandas/core/generic.py:4852, in NDFrame._drop_axis(self, labels, axis, level, errors, only_slice)
   4850         new_axis = axis.drop(labels, level=level, errors=errors)
   4851     else:
-> 4852         new_axis = axis.drop(labels, errors=errors)
   4853     indexer = axis.get_indexer(new_axis)
   4855 # Case for non-unique axis
   4856 else:

File /opt/hostedtoolcache/Python/3.11.14/x64/lib/python3.11/site-packages/pandas/core/indexes/base.py:7136, in Index.drop(self, labels, errors)
   7134 if mask.any():
   7135     if errors != "ignore":
-> 7136         raise KeyError(f"{labels[mask].tolist()} not found in axis")
   7137     indexer = indexer[~mask]
   7138 return self.delete(indexer)

KeyError: "['residual'] not found in axis"

Let’s calculate the “diurnal cycle”/”composite” of the internal energy change term we have estimated in this lab. Remember that in Lab 3-2, we only considered data between Dec–March.

# Create a column representing the hour of the day
snow_internal_energy_df['hour_of_day'] = snow_internal_energy_df.index.hour

# Isolate data to Dec-Mar
# Create a column representing the hour of the day
snow_internal_energy_df = snow_internal_energy_df.loc['20221201': '20230331']

# Isolate the columns we want (i.e. remove snowdepth and snowpack temp)
snow_internal_energy_df = snow_internal_energy_df.drop(columns=['snowpack_temp', 'SnowDepth_d'])

snow_internal_energy_df

	internal_energy_change	hour_of_day
time
2022-12-01 22:30:00	890.630806	22
2022-12-01 23:00:00	149.353811	23
2022-12-01 23:30:00	-23.784119	23
2022-12-02 00:00:00	-151.119530	0
2022-12-02 00:30:00	-263.014894	0
...	...	...
2023-03-31 21:30:00	-0.588026	21
2023-03-31 22:00:00	2.936079	22
2023-03-31 22:30:00	3.402451	22
2023-03-31 23:00:00	1.488843	23
2023-03-31 23:30:00	0.549330	23

4933 rows × 2 columns

# Groupby the hour_of_day and take the median (instead of the mean, this will handle any outliers, which appear in the radiation data)
snow_internal_energy_df_diurnal_average = snow_internal_energy_df.groupby('hour_of_day').median()
snow_internal_energy_df_diurnal_average

	internal_energy_change
hour_of_day
0	-1.771998
1	-3.694650
2	-3.647207
3	-3.160964
4	-3.425118
5	-4.232271
6	-3.177943
7	1.291401
8	7.005205
9	10.800903
10	11.221932
11	10.752116
12	8.929198
13	4.002527
14	0.065242
15	-3.376956
16	-3.983711
17	-2.968995
18	-1.531472
19	-1.296901
20	-1.123003
21	-2.123144
22	-2.395217
23	-2.711073

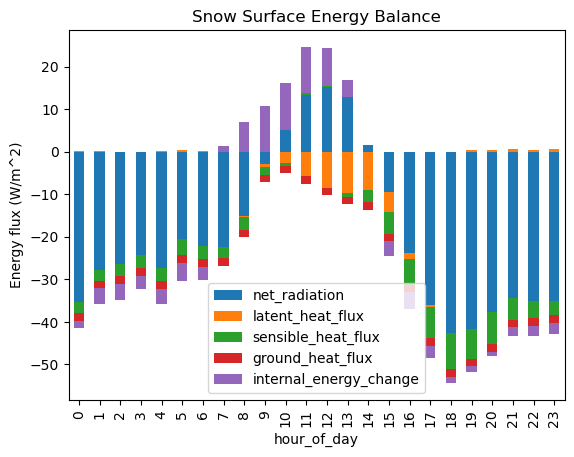

# Combine the two datasets
energy_balance_df_diurnal_average = energy_balance_df_diurnal_average.join(
    snow_internal_energy_df_diurnal_average['internal_energy_change']
)

energy_balance_df_diurnal_average.plot.bar(stacked=True)
plt.title('Snowpack Energy Balance')
plt.ylabel('Energy flux (W/m^2)')

Text(0, 0.5, 'Energy flux (W/m^2)')

Calculate a new estimate of the residual

energy_balance_df_diurnal_average['residual'] = - (
    energy_balance_df_diurnal_average['net_radiation']
    + energy_balance_df_diurnal_average['latent_heat_flux'] # we already negated latent heat flux above, so we need to un-negate it here
    + energy_balance_df_diurnal_average['sensible_heat_flux'] # we already negated sensible heat flux above, so we need to un-negate it here
    + energy_balance_df_diurnal_average['ground_heat_flux']
    + energy_balance_df_diurnal_average['internal_energy_change']
)

Did we do the math correctly? We can check by making sure the sum of all the energy balance terms is 0.

energy_balance_df_diurnal_average.sum(axis=1)

hour_of_day
0     0.0
1     0.0
2     0.0
3     0.0
4     0.0
5     0.0
6     0.0
7     0.0
8     0.0
9     0.0
10    0.0
11    0.0
12    0.0
13    0.0
14    0.0
15    0.0
16    0.0
17    0.0
18    0.0
19    0.0
20    0.0
21    0.0
22    0.0
23    0.0
dtype: float64

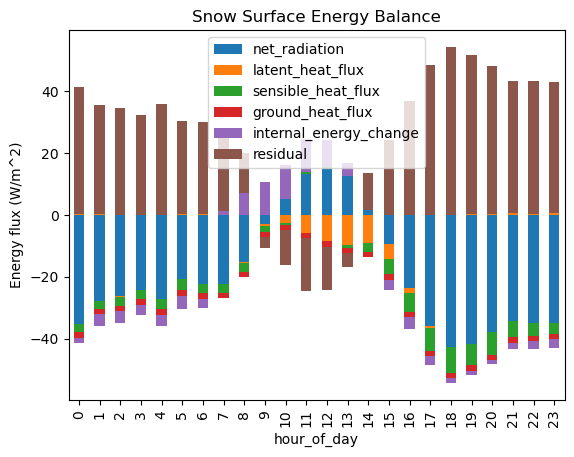

energy_balance_df_diurnal_average.plot.bar(stacked=True)
plt.title('Snowpack Energy Balance')
plt.ylabel('Energy flux (W/m^2)')

Text(0, 0.5, 'Energy flux (W/m^2)')

How does this compare to our plot from Lab 3-2? Did we remove much of the “residual”?
