Lab 4-1: Linear regression#


import numpy as np
import pandas as pd
import scipy.stats as stats
import matplotlib.pyplot as plt
%matplotlib inline

Load in a csv file with snow water equivalent (SWE) measurements from two snow pillow sites (which measure the mass of snow) in California’s Sierra Nevada.

(If you’re interested, read about SWE and snow pillows here)

data = pd.read_csv('../data/pillows_example_2024.csv')
# The original class lab uses pillows_example.csv, which goes through 2010
# Sometimes people say that predictability from one snow site to another is changing.
# Note, if you're curious to see whether we get the same results with more recent years,
# instead use pillows_example_2024.csv

data.head(3)
years BLC_max SLI_max
0 1983 688 2446
1 1984 112 1471
2 1985 216 1143

This data give us the peak SWE value (mm) at the Blue Canyon (BLC), and Slide Canyon (SLI) measurement sites. These sites are maintained by the California Department of Water Resources, with metadata for Blue Canyon here and for Slide Canyon here. Note that they are in different watersheds and at different elevations.

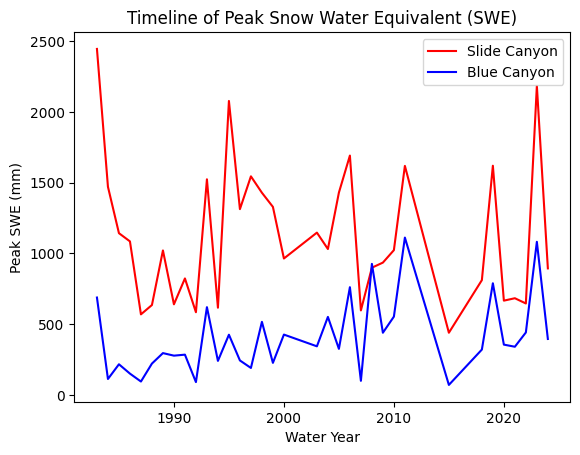

Plot the SWE data from the two sites

fig, ax = plt.subplots()

data.plot(x='years', y='SLI_max', c='r', ax=ax, label='Slide Canyon')
data.plot(x='years', y='BLC_max', c='b', ax=ax, label='Blue Canyon')

ax.set_title('Timeline of Peak Snow Water Equivalent (SWE)')
ax.set_xlabel('Water Year')
ax.set_ylabel('Peak SWE (mm)');
plt.legend(loc="best")
<matplotlib.legend.Legend at 0x7f34215fea90>
../../_images/2da1864b804d8f22798886ee6b0d40750ef4f5a602394b55451bef3e09b46030.png

What does the above plot show?

What you see above is a plot of the maximum value of snow water equivalent (SWE) measured at two snow pillows (these weigh the snow and convert that weight into the water content of the snow). These measurements of snow are not too far from each other geographically (both in the Sierra Nevada, California, although Slide Canyon is at a higher elevation and further south), and we might expect that more snow at one site woud correspond to more snow at the other site as well. We can check this by examining a regression between the data at the two sites.

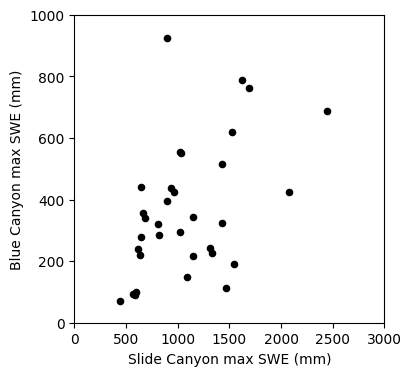

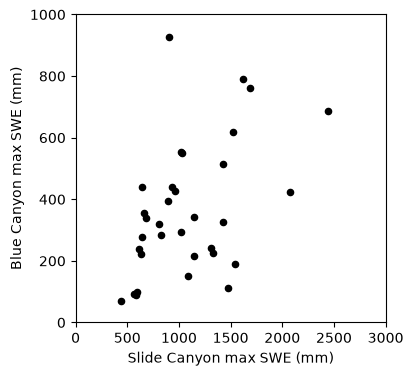

The first step to any regression or correlation analysis is to create a scatter plot of the data.

fig, ax = plt.subplots(figsize=(4,4))

# Scatterplot
data.plot.scatter(x='SLI_max', y='BLC_max', c='k', ax=ax);

ax.set_xlabel('Slide Canyon max SWE (mm)')
ax.set_ylabel('Blue Canyon max SWE (mm)');

ax.set_xlim((0,3000))
ax.set_ylim((0,1000));
../../_images/9b999fe1162286cc87c607bae3cc6e98208357cfb8748ec479f07c51b3a1e62b.png

Linear regression: Could we use SWE measurements at Slide Canyon to predict SWE at Blue Canyon?

The plot above suggests that this is a borderline case for applying linear regression analysis. What rules of linear regression might we worry about here? (heteroscedasticity)

We will proceed with calculating the regression and then look at the residuals to get a better idea of whether this is the best approach.


Manual calculation of linear regression#

Here we’ll first compute it manually, solving for our y-intercept, \(B_0\), and slope \(B_1\):

\(B_1 = \displaystyle \frac{n(\sum_{i=1}^{n}x_iy_i)-(\sum_{i=1}^{n}x_i)(\sum_{i=1}^{n}y_i)}{n(\sum_{i=1}^{n}x_i^2)-(\sum_{i=1}^{n}x_i)^2}\)

\(B_0 = \displaystyle \frac{(\sum_{i=1}^{n}y_i)-B_1(\sum_{i=1}^{n}x_i)}{n} = \bar{y} - B_1\bar{x}\)

n = len(data) # length of our dataset

x = data.SLI_max # using x for shorthand below
y = data.BLC_max # using y for shorthand below

B1 = ( n*np.sum(x*y) - np.sum(x)*np.sum(y) ) / ( n*np.sum(x**2) - np.sum(x)**2 ) # B1 parameter, slope
B0 = np.mean(y) - B1*np.mean(x) # B0 parameter, y-intercept

print('B0 : {}'.format(np.round(B0,4)))
print('B1 : {}'.format(np.round(B1,4)))
B0 : 54.499
B1 : 0.3113

Then our linear model to predict \(y\) at each \(x_i\) is: \(\hat{y}_i = B_0 + B_1x_i\)

y_predicted = B0 + B1*x

And our residuals are: \((y_i - \hat{y}_i)\)

residuals = (y - y_predicted)

Finally, compute our Sum of Squared Errors (from our residuals) and Total Sum of Squares to get the correlation coefficient, R, for this linear model.

\(SSE = \displaystyle\sum_{i=1}^{n} (y_i - \hat{y}_i)^2\)

\(SST = \displaystyle\sum_{i=1}^{n} (y_i - \bar{y}_i)^2\)

\(R^2 = 1 - \displaystyle \frac{SSE}{SST}\)

And compute the standard error of the estimate, \(\sigma\) for this model.

\(\sigma = \sqrt{\displaystyle\frac{SSE}{(n-2)}}\)

sse = np.sum(residuals**2)

sst = np.sum( (y - np.mean(y))**2 )

r_squared = 1 - sse/sst
r = np.sqrt(r_squared)

sigma = np.sqrt(sse/(n-2))
print('SSE : {} cfs'.format(np.round(sse,2)))
print('SST : {} cfs'.format(np.round(sst,2)))
print('R^2 : {}'.format(np.round(r_squared,3)))
print('R : {}'.format(np.round(r,3)))
print('sigma : {}'.format(np.round(sigma,3)))
SSE : 1694894.64 cfs
SST : 2510327.54 cfs
R^2 : 0.325
R : 0.57
sigma : 226.628

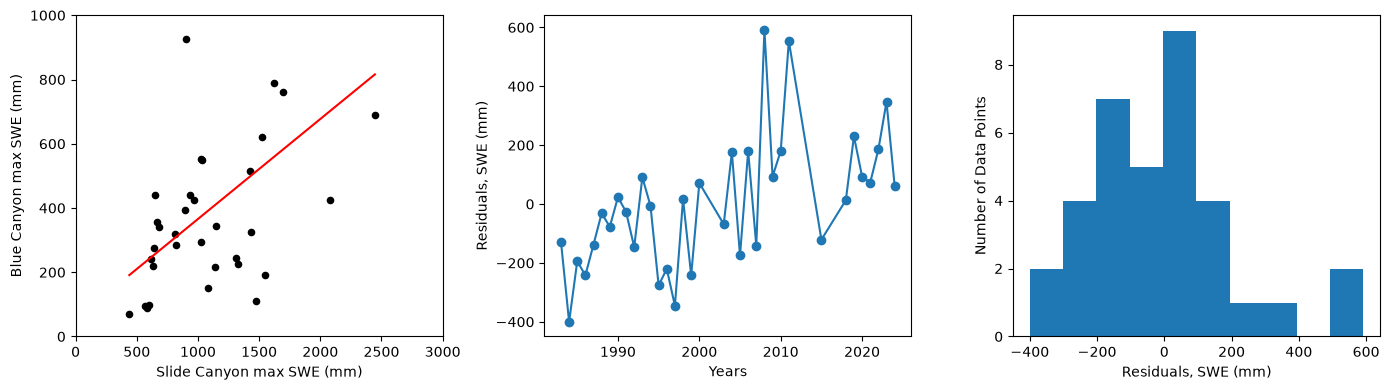

Plot our results:

fig, [ax1, ax2, ax3] = plt.subplots(nrows=1, ncols=3, figsize=(14,4), tight_layout=True)

# Scatterplot
data.plot.scatter(x='SLI_max', y='BLC_max', c='k', ax=ax1);

# Plot the regression line, we only need two points to define a line, use xmin and xmax
ax1.plot([x.min(), x.max()], [B0 + B1*x.min(), B0 + B1*x.max()] , '-r')

ax1.set_xlabel('Slide Canyon max SWE (mm)')
ax1.set_ylabel('Blue Canyon max SWE (mm)');

ax1.set_xlim((0,3000))
ax1.set_ylim((0,1000));

# Plot the residuals
ax2.plot(data.years,residuals,'-o')

ax2.set_xlabel('Years')
ax2.set_ylabel('Residuals, SWE (mm)');

# Plot a histogram of the residuals
ax3.hist(residuals, bins=10)

ax3.set_xlabel('Residuals, SWE (mm)')
ax3.set_ylabel('Number of Data Points');
../../_images/d868837fdc9875f92ec44b7fc380dd67dfcb8902d3ffd7613c298f0defa98702.png

Linear regression using the scipy library#

Now we’ll use the scipy.stats.linregress() function to do the same thing. Review the documentation or help text for this function before proceeding.

stats.linregress?
# use the linear regression function
slope, intercept, rvalue, pvalue, stderr = stats.linregress(data.SLI_max, data.BLC_max)

print('B0 : {}'.format(np.round(intercept,4)))
print('B1 : {}'.format(np.round(slope,4)))

print('R^2 : {}'.format(np.round(rvalue**2,3)))
print('R : {}'.format(np.round(rvalue,3)))
print('stderr : {}'.format(np.round(stderr,3)))
B0 : 54.499
B1 : 0.3113
R^2 : 0.325
R : 0.57
stderr : 0.078

Do we get the same results as above?

No, our “standard error” is different. Why is that? If you look into the documentation for the lingregress function, you’ll see that it calls this output the “standard error of the gradient” meaning the standard error of the slope, \(B1\).

This is related to the “standard error”, \(\sigma\) like:

\(SE_{B_1} = \displaystyle \frac{\sigma}{\sqrt{SST_x}} \) where \(SST_x = \displaystyle\sum_{i=1}^{n} (x_i - \bar{x}_i)^2\)

Compute the standard error from the standard error of the gradient:

# Compute the SST for x
sst_x = np.sum( (x - np.mean(x))**2 )

# Compute the standard error
sigma = stderr * np.sqrt(sst_x)
print('sigma : {}'.format(np.round(sigma,3)))
sigma : 226.628

This should now match what we solved for manually above.

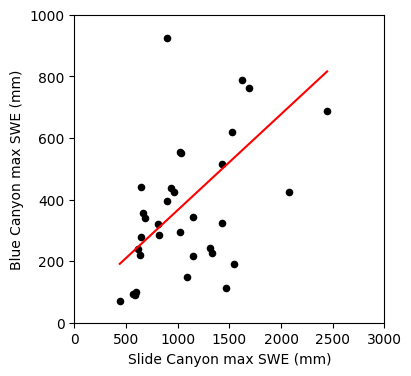

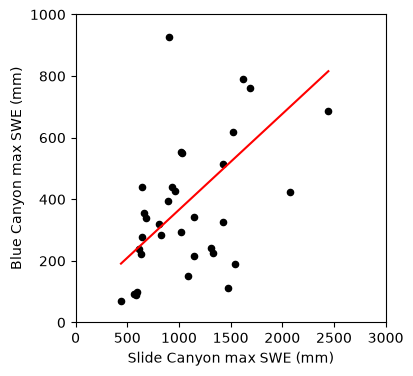

Finally, plot the result

fig, ax = plt.subplots(figsize=(4,4))

# Scatterplot
data.plot.scatter(x='SLI_max', y='BLC_max', c='k', ax=ax);

# Create points for the regression line
x = np.linspace(data.SLI_max.min(), data.SLI_max.max(), 2) # make two x coordinates from min and max values of SLI_max
y = slope * x + intercept # y coordinates using the slope and intercept from our linear regression to draw a regression line

# Plot the regression line
ax.plot(x, y, '-r')

ax.set_xlabel('Slide Canyon max SWE (mm)')
ax.set_ylabel('Blue Canyon max SWE (mm)');

ax.set_xlim((0,3000))
ax.set_ylim((0,1000));
../../_images/1878b15a451c1c7e5b9b573ee77325f6abe630ceedaa42be43af44e93ae48881.png

We’ve used the slope and intercept from the linear regression, what were the other values the function returned to us?

This function gives us our R value, we can report how well our linear regression fits our data with this or R-squared (you can see in this case linear regression did a poor job)

print('r-value = {}'.format(rvalue))

print('r-squared = {}'.format(rvalue**2))
r-value = 0.5699397138434139
r-squared = 0.32483127741591256

This function also performed a two-sided “Wald Test” (t-distribution) to test if the slope of the linear regression is different from zero (null hypothesis is that the slope is not different from a slope of zero). Be careful using this default statistical test though, is this the test that you really need to use on your data set?

print('p-value = {}'.format(pvalue))
p-value = 0.0003515297274446997

And finally it gave us the standard error of the gradient

print('standard error = {}'.format(stderr))
standard error = 0.07812811196902456

Now use this linear model to predict a \(y\) (Blue Canyon) value for each \(x\) (Slide Canyon) value:

y_predicted = slope * data.SLI_max + intercept

Plot residuals

We should make a plot of the residuals (actual - predicted values)

residuals = data.BLC_max - y_predicted

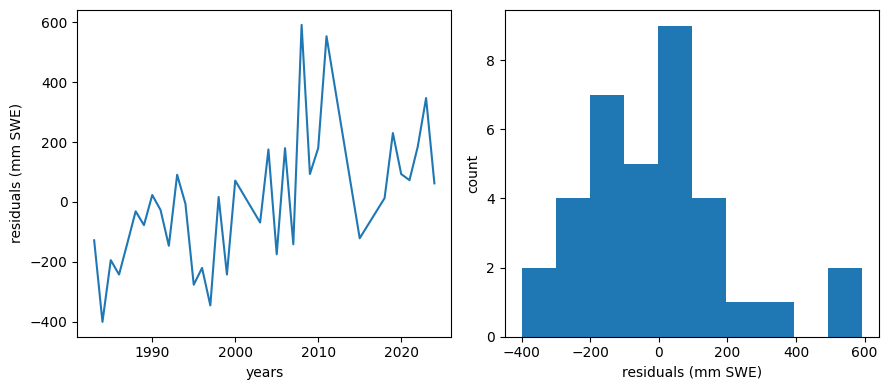

For a good linear fit, we hope that our residuals are small, don’t have any trends or patterns themselves, want them to be normally distributed:

f, (ax1, ax2) = plt.subplots(1,2,figsize=(9,4))

ax1.plot(data.years,residuals)
ax1.set_xlabel('years')
ax1.set_ylabel('residuals (mm SWE)')

ax2.hist(residuals)
ax2.set_xlabel('residuals (mm SWE)')
ax2.set_ylabel('count')

f.tight_layout()
../../_images/1c592d75979be962aa9930477e8c4928c322b7f6430f42641d46eabd8f60b2c8.png

That distribution doesn’t look quite normal, and there seems to maybe be a negative bias (our predictions here might be biased higher then the observations).

There does seem to be a trend in the residuals over time, so this model may not be the best.
We will explore this again in Lab 5.


Making predictions with our linear model#

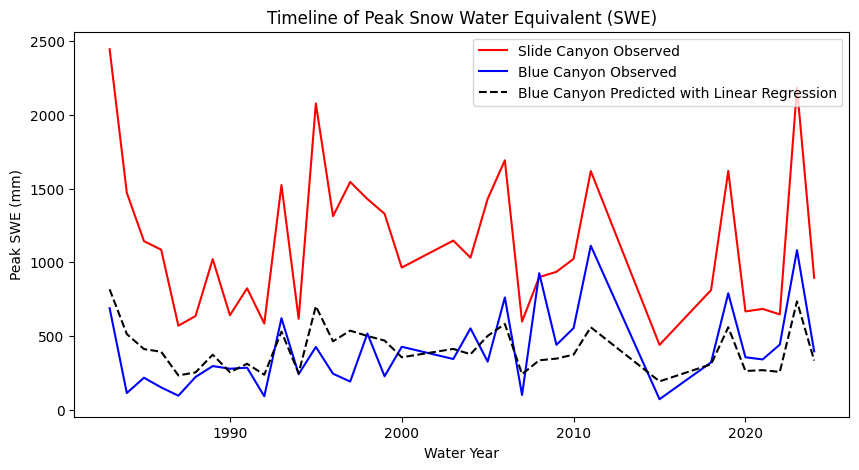

Let’s plot what the predictions of Blue Canyon SWE would look like if we were to use this linear model:

# Use our linear model to make predictions:
BLC_pred = slope * data.SLI_max + intercept
fig, ax = plt.subplots(figsize=(10,5))

data.plot(x='years', y='SLI_max', c='r', ax=ax, label='Slide Canyon Observed')
data.plot(x='years', y='BLC_max', c='b', ax=ax, label='Blue Canyon Observed')

# Plot the predicted SWE at Blue Canyon
ax.plot(data.years, BLC_pred, c='k', linestyle='--', label='Blue Canyon Predicted with Linear Regression')

ax.set_title('Timeline of Peak Snow Water Equivalent (SWE)')
ax.set_xlabel('Water Year')
ax.set_ylabel('Peak SWE (mm)');
plt.legend(loc="best")
<matplotlib.legend.Legend at 0x7f342097b4d0>
../../_images/a38b5f45c56e6efd6d4a7f65d996cb398e76376a6615cdfea93908f03a49b1eb.png
