Lab 3-2: Rank-Sum Test and Variance Test Examples#
Note that the scipy.stats.ranksums function should only be used to compare two samples from continuous distributions (i.e. theoretical distributions). It does not handle ties between measurements nor does it apply the continuity correction. For a rank sum test function that can compare discontinuous distribution (i.e. empirical data), handle ties, and apply a continuity correction, use scipy.stats.mannwhitneyu.
# import libraries we'll need
import pandas as pd
import numpy as np
import scipy.stats as stats
import matplotlib.pyplot as plt
%matplotlib inline
# Read the excel file
skykomish_data_file = '../data/Skykomish_peak_flow_12134500_WY1929_2025.xlsx'
skykomish_data = pd.read_excel(skykomish_data_file)
# Preview our data
skykomish_data.head(3)
/opt/hostedtoolcache/Python/3.11.17/x64/lib/python3.11/site-packages/openpyxl/worksheet/_reader.py:329: UserWarning: Unknown extension is not supported and will be removed
warn(msg)
| date of peak | water year | peak value (cfs) | gage_ht (feet) | |
|---|---|---|---|---|
| 0 | 1928-10-09 | 1929 | 18800 | 10.55 |
| 1 | 1930-02-05 | 1930 | 15800 | 10.44 |
| 2 | 1931-01-28 | 1931 | 35100 | 14.08 |
# Set our alpha and confidence from our prior z-tests
alpha = 0.05
conf = 1 - alpha
# Calculate z_alpha from a normal distribution (from our prior z-tests)
z_alpha = stats.norm.ppf(conf)
# Divide the data into the early period (before 1975) and late period (after and including 1977).
skykomish_before = skykomish_data[ skykomish_data['water year'] < 1977 ]
skykomish_after = skykomish_data[ skykomish_data['water year'] >= 1977 ]
In this example, we will test the significance of the change in the mean between the two sample periods using the two-sample Rank-Sum test. Read the documentation for scipy.stats.mannwhitneyu.
u_rs, p_rs = stats.mannwhitneyu(skykomish_after['peak value (cfs)'],
skykomish_before['peak value (cfs)'],
use_continuity=True,
alternative="greater")
print("U from stats.mannwhitneyu: {}".format(np.round(u_rs,4)))
print("P from stats.mannwhitneyu: {}".format(np.round(p_rs,4)))
z_rs = stats.norm.ppf(1-p_rs)
print("Z from looking up (1-P): {}".format(np.round(z_rs,4)))
U from stats.mannwhitneyu: 1524.5
P from stats.mannwhitneyu: 0.006
Z from looking up (1-P): 2.511
This returns u_mannwhitneyu, the test statistic U presuming this is a large enough sample that this is normally distributed, and p_mannwhitneyu, the one-sided p-value of the test.

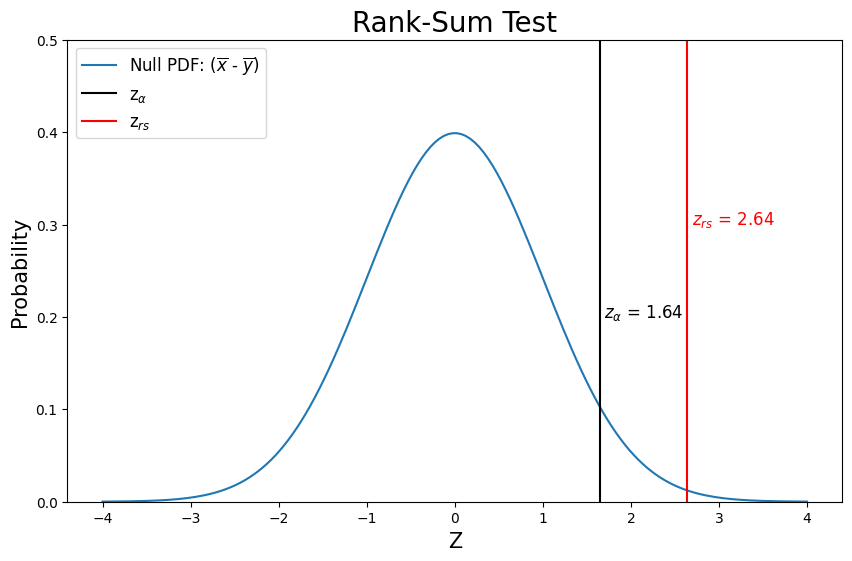

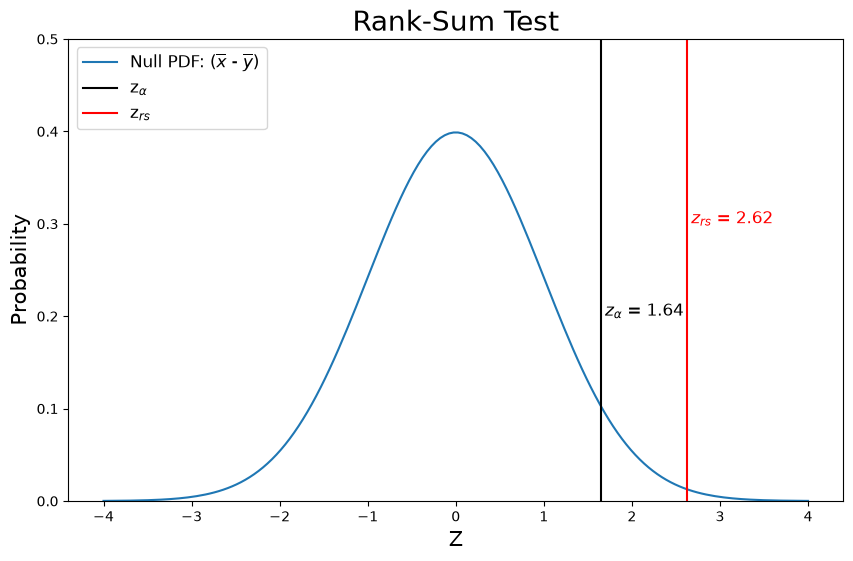

# Make a plot
plt.figure(figsize=(10,6))
# Create values for z
z = np.linspace(-4, 4, num=160)
# Plot the Null PDF
plt.plot(z, stats.norm.pdf(z), label='Null PDF: ($\overline{x}$ - $\overline{y}$)')
# Plot where z_alpha is
plt.axvline(z_alpha, color='black', label=r'z$_\alpha$')
# Add label here with alpha value
plt.text(z_alpha+0.05, 0.2, r'$z_{\alpha}$ = ' + str(round(z_alpha,2)),fontsize=12, color='k')
# Plot z_test by looking up p-value from MannWhitneyU test
plt.axvline(z_rs, color='r', label=r'z$_{rs}$')
# Add label here with z value (by looking up p-value from MannWhitneyU test)
plt.text(z_rs+0.05, 0.3, r'$z_{rs}$ = ' + str(round(z_rs,2)),fontsize=12, color='r')
# Add title, legend, and labels
plt.title('Rank-Sum Test',fontsize=20)
plt.xlabel('Z', fontsize=15)
plt.ylabel('Probability',fontsize=15)
plt.ylim(0, 0.5)
plt.legend(loc='upper left',fontsize=12);
How does our conclusions from the Rank-Sum test compare to our prior two-sample Z-test of the same hypothesis in Lab 2-1? (i.e. compare p-value for the two tests) Only consider the case where the null hypothesis is that no change has occurred.
And, how do nonparametric variance tests compare?#
Last week, in Lab 2-3, we applied two tests for the change in the variance that assumed our data came from a normal distribution. The first, sometimes called Bartlett’s test, used the chi-squared distribution and tested for a change from a known true standard deviation. The second, sometimes called the F-test, compared the ratio of the variances from the two periods to the F-distribution. It assumed we did not know the true standard deviation but that our data came from a normal distribution. With 95% confidence, these two tests came to different conclusions about whether the variance (or standard deviation) had changed. In Lab 2-4, we used MonteCarlo simulations to test whether the second period standard deviation was larger than at least 95% of all standard deviations generated from random number sets drawn from the early period distribution.
Now, we investigate two nonparametric tests for a change in the variance.
Fligner-Killeen Test for Equal Variance (Nonparametric)#
Ch 5 of Helsel and Hirsch in Section 5.6.1, recommends the Flignner-Killeen test for equal variance. It computes the absolute value of the residuals (AVR) from each group median and then compares it with a chi-squared distribution. The function is built into scipy stats.
Fligner-Killeen test: stat, p = stats.fligner(a, b)
stat_FK, p_FK = stats.fligner(skykomish_after['peak value (cfs)'],
skykomish_before['peak value (cfs)'])
print("stat from stats.fligner: {}".format(np.round(stat_FK,4)))
print("P from stats.fligner: {}".format(np.round(p_FK,4)))
stat from stats.fligner: 0.348
P from stats.fligner: 0.5552
So, with this test, for alpha of 0.05, we cannot detect a change in variance has occurred.
Levene’s test with the Brown-Forsythe Modification (Use Medians to be robust to non-normality)#
The same section of the text recommends Levene’s test, using the medians, which you may also see described as the Brown-Forsythe test. This can be done for multiple groups.
Python code for the Brown-Forsythe test (Levene’s test centered at the median)
stat, p_value = stats.levene(group1, group2, group3, center=’median’)
stat_BF, p_BF = stats.levene(skykomish_after['peak value (cfs)'],
skykomish_before['peak value (cfs)'], center='median')
print("stat from stats.levene: {}".format(np.round(stat_BF,4)))
print("P from stats.levene: {}".format(np.round(p_BF,4)))
stat from stats.levene: 0.4635
P from stats.levene: 0.4977
Similar to the Fligner-Killeen test, we cannot reject the null, so we cannot detect a change in variance has occurred.
